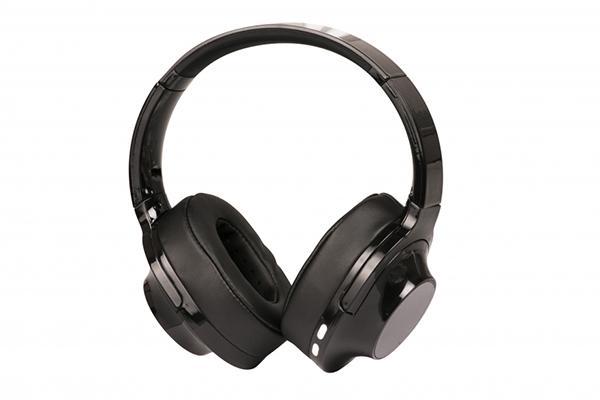

The noise canceling Bluetooth headphone V4.2 possesses the following characteristics:
* Bluetooth V4.0 stereo headset
* With music streaming & hands free
* Last number redial
* Supports 3.5 Audio input
* IOS system battery display
* Active noise cancellation
Bluetooth specification | BT4.0+EDR |
Bluetooth chips | CSR8635 |
Bluetooth profiles | A2DP/AVRCP/HSP/HFP |
S/N ratio | ≥95dB/mW |
Frequency respond range | 20Hz-20KHz |
Noise reduction | 15-20dB |
Battery | 400mAH 3.7V lithium-ion polymer battery |
Music play time | 12 hours (75% of the volume) |
Talk time | 12 hours |
Charging time | About 3 hours |
Product size | 180mm*165mm*70mm |
1. Active noise cancellation (ANC)
(1) The more ambient noise, the better the noise cancellation
We can’t change the environment noise, but we can choose to accept less noise. By using the built-in microphone of the earphone to monitor background noise and then generate sound waves with inverted phases, the active noise cancellation technique neutralizes noise. When the noise is neutralized, a better sound quality is enjoyed, lending itself to better studying or work focus.
A: Noise sound wave curve | B: Simultaneous inverting compensated acoustic curve | C: Offsetting acoustic curve |
(2) The difference between active noise cancellation and passive noise cancellation
Passive noise cancellation cannot eliminate noise with middle and high frequency in places such as cars and underground stations.
By using active noise cancellation, the low frequency noise can be significantly reduced (such as in a car or underground station). Environments with mid to high frequency noises can also reduce the ambient noise, thus creating a comfortable and quiet music listening environment.
2. Speaker introduction
Passive noise cancellation cannot eliminate noise with middle and high frequency in places such as cars and underground stations.
By using active noise cancellation, the low frequency noise can be significantly reduced (such as in a car or underground station). Environments with mid to high frequency noises can also reduce the ambient noise, thus creating a comfortable and quiet music listening environment.
A: Titanium plated compound film | B: PET compound film | C: Voice coil | D: NdFeB magnets |
3. Battery life
When the active noise cancellation and Bluetooth are both on, the noise canceling Bluetooth headphones still have a battery life of 12 hours to meet long term requirements for music playing and talking.
Bio-protein film cover
The holding force of the headset can be adjusted according to facial features to reduce constriction. It uses a bio-protein film cover with high quality memory foam inside, making it comfortable to wear, ensuring users can listen to music for long periods of time with no discomfort.
Comfortable and fitting ear cushion
The wrinkled ear cushion is more fitting because it can cover the ear completely, thus cutting out background noise and making it comfortable for long term usage.
Chipset | CSR 8635 | Standby Time | 150 Hours |
BT Version | V4.0 | Battery Capacity | 3.7V /400mAh |
Frequency Range | 2.402-2.48GHz | Charging Time | about 3 hours |
Support Profiles | HSP / HFP / A2DP /AVRCP | Charging Type | Micro-USB |
Talking Time | about 12 hours | Charging Power | DC 5V, 200mA |
Music Play Time | about 12 hours | Transmit Power | Class 2 |
Transmission Distance | ≤10m / 33ft | Charging Voltage | DC 5V |
Speaker Output Power | 2 x 20mW | Contact Terms | Point-to Point |
Speaker Sensitivity | 90dB±4dB (S.P.L/1mW, 1KHZ) | Mic sensitivity | -42db |
Speaker impedance | 32Ω | Mic impedance | 2200Ω |
Speaker Frequency | 20-20Khz | Frequency Coverage | 2.4GHZ ISM Band |
THD | 5% (1mW, 1KHz) | Channel | 79 Channels of 1MHz BW |
RMS Power | 20mW * 2 | Active noise cancellation | UP to 15~20dB between 50~500HZ |
S/N ratio | -70db |

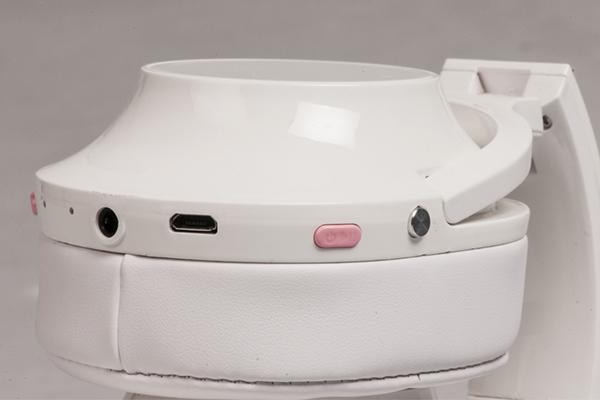

Button | 4 buttons: multifunction button, V+/next track button, V-/previous track button, ANC button |
Ports | 1x micro USB charging port |
Indicator Light | 1 x blue LED, 1 x red LED,1 x green LED |
Bluetooth | YES | Volume Control | YES |
Hands free | YES | Low Power Indication | YES |
Music Play | YES | Noise Cancellation | YES |
Multipoint function | YES | Voice Prompt | YES |
Speaker Driver | Φ40 32Ω 20-20K(Hz) |
Microphone | -42±3dB |
